4228R
overview

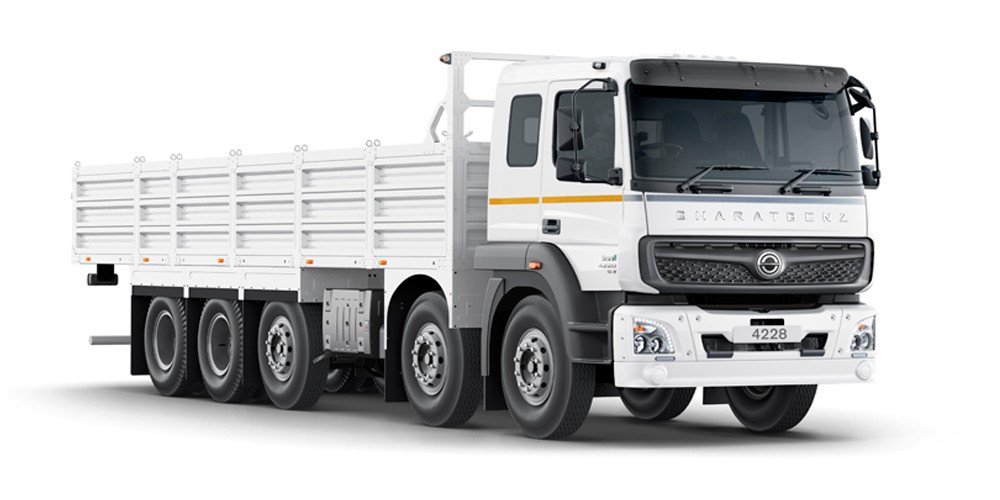

Over the last few years, BharatBenz has made significant progress in the heavy-duty haulage trucks segment in India. The 4228R comes in two variants 42000 kgs (Tubeless & 295/90R20) and the 41920 kgs (11R20) gross vehicle weight rigid haulage truck with promise of maximum payload, higher performance and superior efficiency aims at higher profitability in today’s competitive logistics and transportation business. The 4228R has an excellent fuel-efficient and powerful OM926, 6-cylinder 7200cc BSVI engine. . The 4228R has a frame section (DxWxT) 286 x 70 x 8 with standard Anti Roll Bar on the front axle. Comes with the parabolic type leaf spring front suspension with 2 Hydraulic shock absorbers and balance type semi-elliptical leaf spring rear suspension.
Engine
  • Model : OM 926
  • Maximum Power, KW : 210 Kw @ 2200 rpm
  • Maximum Torque, Nm : 1100 Nm @ 1200 - 1600 rpm
  • No. of Cylinders, Displacement (CC) : 6, 7200
  • Emission Compliance : Bharat Stage VI

Specifications

Gearbox Model & Type G 131, 9F+1R, Mechanical, Synchromesh Gears
Clutch Type Single Dry Plate, Hydraulic Control
Clutch Diameter(mm) 395, 4 mm

Front Axle Model, Type IF 7.0
Rear Axle Model, Type RA 1:IR440-11 & RA2: IT- 10
Rear Axle Ratio* 4.3

Wheel Base(mm):6575
Cabin:Sleeper
Loading Span(ft)/Loadbody cpc (Cu.m):28ft
Overall Length(mm):10992
Overall Width(mm):2490
Overall Height(mm)(CBC):2939
Front Overhang(mm):1485
Rear Overhang(mm):2257
Minimum Ground Clearance(mm):222

Gross Vehicle Weight 42000 kgs (Tubeless & 295/90R20)/41920 kgs (11R20)

Frame Section (DxWxT) (mm) 286 x 70 x 8
Front Suspension Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
Rear Suspension Balancer Type Semi-Elliptical Leaf Spring
Anti Roll Bar Standard on Front Axle

Service Brake Pneumatic, Foot Operated, Dual Line with ABS
Parking Brake Pneumatically Operated Hand Control Valve
Front Axle Brake Ø 410 drum
Rear Axle Brake Ø 410 drum
Tyre Size Radial Tyres (Rib & Lug Pattern - 11R20 or 295/90R20) Tubeless Tyres (All Wheel Pattern - 295/80R22.5) Tubeless Tyres (Rib & Lug Pattern - 295/80R22.5)

Steering Type Hydraulic Power Assisted

Fuel Tank/Filling Capacity Standard - 330L/310L
Adblue Tank/Filling Capacity 60L/51L
Voltage 24V
Battery Capacity 120Ah

Maximum Gradeability % 29%
Maximum Geared Speed 80 kmph(Standard)
Turning Circle Diameter(TCD)* 24m
