4023TT
overview

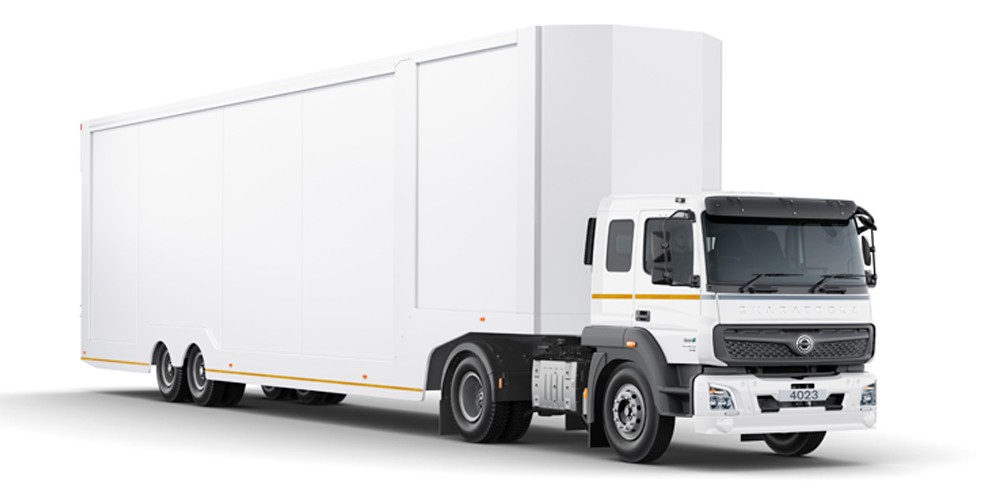

Bharat Benz 4023TT is a frontline heavy-duty tractor-trailer used for long-haul transportation. The engine is torque and tuned to a nine-speed 9F+1R gearbox as a driveline combination. This tractor-trailer with intuitive features comes with suitable two-axle trailers in 37.2T gross carrying weight optimal for some of the heaviest cargo. On this tractor, you get radial tires in 10.00 R20 for the 37.2T gross carrying the weight and 11R20 or 29590R20 for 39.5T GCW tubeless-tires. The fuel tank is 455L along with a 60L Adblue tank with a maximum speed limit of 80kmph. The effortless driving experience is assured in all of BharatBenz products, and this tractor comes with a hydraulic power-assisted steering system. Other prominent features include Air Brakes, ABS, and seat belts enhanced for drivers comfort and safety.
Engine
  • Model : OM 926
  • Maximum Power, KW : 180 Kw @ 2200 rpm
  • Maximum Torque, Nm : 850 Nm @ 1200 - 1600 rpm
  • No. of Cylinders, Displacement (CC) : 6, 7200
  • Emission Compliance : Bharat Stage VI

Specifications

Gearbox Model & Type G 131, 9F + 1R, Mechanical, Synchromesh Gears
Clutch Type Single Dry Plate, Hydraulic Control
Clutch Diameter(mm) 395, 3.9 mm

Front Axle Model, Type IF 7.0
Rear Axle Model, Type RA: IR440-11
Rear Axle Ratio* 4.3/4.778

Wheel Base(mm):3300
Cabin:Sleeper
Loading Span(ft)/Loadbody cpc (Cu.m):NA
Overall Length(mm):5780
Overall Width(mm):2490
Overall Height(mm)(CBC):2960
Front Overhang(mm):1485
Rear Overhang(mm):995
Minimum Ground Clearance(mm):237

Gross Vehicle Weight (With suitable Two Axle Trailer) 37.2t GCW/39.5t GCW

Frame Section (DxWxT) (mm) 288 x 70 x 9
Front Suspension Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
Rear Suspension Semi-Elliptical Leaf Spring
Anti Roll Bar Standard on Front Axle

Service Brake Pneumatic, Foot Operated, Dual Line with ABS
Parking Brake Pneumatically Operated Hand Control Valve
Front Axle Brake Ø 410 drum
Rear Axle Brake Ø 410 drum
Tyre Size Radial Tyres 10.00 R20 for 37.2t GCW, 11R20 (or) 295/90R20 for 39.5t GCW Tubeless-tyres (295/80R22.5)

Steering Type Hydraulic Power Assisted

Fuel Tank/Filling Capacity 455 L/ 430 L
Adblue Tank/Filling Capacity 60L/51L
Voltage 24V
Battery Capacity 120Ah

Maximum Gradeability % 26.2% (4.778 RAR)/ 25.8% (4.3 RAR)
Maximum Geared Speed 80 kmph
Turning Circle Diameter(TCD)* 12.8m
