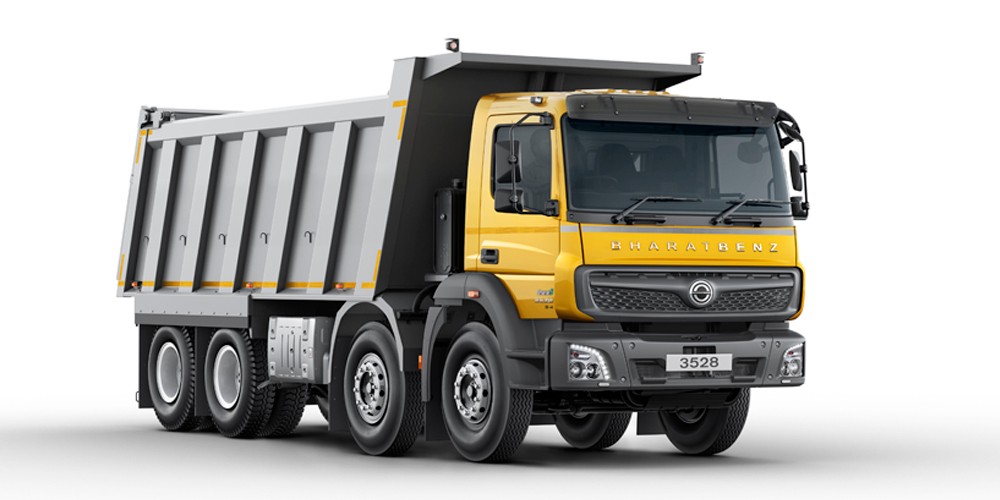

3528C
overview
This new tipper has now been upgraded as per the new axle-load norms configuration and offers all the benefits of Bharat Benz like – global technology and build quality plus power engines to the lower spectrum of mining tipper applications.. Powering this truck is the new BS 6 compliant OM 926, 6-cylinder arrangement and a displacement of 7200cc engine. The maximum power output from this engine is 210 Kw @2200 rpm. The peak torque for this hig performance truck is 1100 Nm @ 1200 – 1600 rpm. It gets a G131 6 Speed gearbox along with a 430mm Single dry plate clutch with hydraulic control with clutch booster. The top speed is limited to 60kmph while it offers a maximum Gradeability of 45.2%.. With a gross vehicle weight of 35000 (Nylon & Radial Tyre) and 34200 (Mining Tyre). This has a frame section (DxWxT) 288 x 70 x 9 with standard front and rear Anti Roll Bar (RA2). Has the most advanced Pneumatic Foot Operated braking system with Dual Line ABS and pneumatically operated hand control valve for the parking breaks.
Engine
  • Model : OM 926
  • Maximum Power, KW : 210 Kw @ 2200 rpm
  • Maximum Torque, Nm : 1100 Nm @ 1200 - 1600 rpm
  • No. of Cylinders, Displacement (CC) : 6, 7200
  • Emission Compliance : Bharat Stage VI

Specifications

Gearbox Model & Type G 131, 9F + 1R, Mechanical, Synchromesh Gears
Clutch Type Single Dry Plate, Hydraulic Control
Clutch Diameter(mm) 430, 3.5 mm

Front Axle Model, Type IF 7.0
Rear Axle Model, Type RA1: IRT 390-11, RA2: IRT 390-11
Rear Axle Ratio* 5.375

Wheel Base(mm):5175
Cabin:Day with Foldable Berth
Loading Span(ft)/Loadbody cpc (Cu.m):19 Cu.m Box
Overall Length(mm):8085/8385 (RMC)
Overall Width(mm):2490
Overall Height(mm)(CBC):2983
Front Overhang(mm):1485
Rear Overhang(mm):750/1050 (RMC)
Minimum Ground Clearance(mm):290

Gross Vehicle Weight 35000 (Nylon & Radial Tyre), 34200 (Mining Tyre)

Frame Section (DxWxT) (mm) 288 x 70 x 9
Front Suspension Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
Rear Suspension Bogie Suspension
Anti Roll Bar Front: Standard; Rear: Standard(RA2)

Service Brake Pneumatic, Foot Operated, Dual Line with ABS
Parking Brake Pneumatically Operated Hand Control Valve
Front Axle Brake Ø 410 drum
Rear Axle Brake Ø 410 drum
Tyre Size Radial Tyres (11R20), Nylon Tyre (11x20), Mining Tyre (11 x 20 mine

Steering Type Hydraulic Power Assisted

Fuel Tank/Filling Capacity 180L
Adblue Tank/Filling Capacity 43L/36L
Voltage 24V
Battery Capacity 120Ah

Maximum Gradeability % 45.2%
Maximum Geared Speed 60 kmph
Turning Circle Diameter(TCD)* 23.1m
