1617R
overview

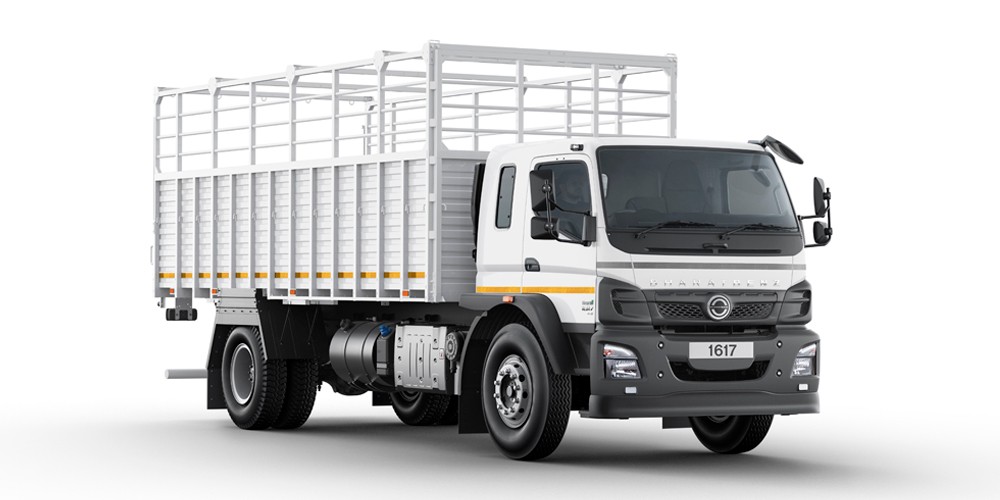

BharatBenz 1617R is a heavy-duty cargo truck that comes well equipped with world-class technology and a rugged build. Owing to its top of the line safety features and robust engine that performs well in over all forms of terrain, the BharatBenz 1617R is a reliable offering in the market. Also, the vehicle is offered in two colour schemes namely Arctic White and Golden Brown. Powering the Bharat Benz 1617R is a 4D34i engine that draws a maximum power output of 125 Kw @ 2500 rpm alongside producing a peak torque of up to 520Nm of torque. Additionally, the BSVI compliant four-cylinder engine comes with 3900cc of displacements along with a G85 six-speed gear, single dry plate, and hydraulic control clutch boosters. Air Brakes offer superior safety in BharatBenz 1617R and Multileaf Spring suspension in front offers good ride quality. More details of the BharatBenz 1617R truck features like mileage, fuel tank capacity, tyre, suspension, etc are available in the sections below.
Engine
  • Model : 4D34i
  • Maximum Power, KW : 125 Kw @ 2500 rpm
  • Maximum Torque, Nm : 520 Nm @ 1500 rpm
  • No. of Cylinders, Displacement (CC) : 4, 3900
  • Emission Compliance : Bharat Stage VI

Specifications

Gearbox Model & Type Improved G85, 6F+1R, Mechanical, Synchromesh Gears
Clutch Type Single Dry Plate, Hydraulic Control
Clutch Diameter(mm) 362

Front Axle Model, Type IF 6.0
Rear Axle Model, Type MS 145
Rear Axle Ratio* [5.57 S,6.17 HAP/Optional],[5.57 S,6.17 HAP/Optional],[5.57 S, 6.17 HAP/Optional]

Wheel Base(mm):510059006700
Cabin:SleeperSleeperSleeper
Loading Span(ft)/Loadbody cpc (Cu.m):20ft24ft31ft
Overall Length(mm):8600981511995
Overall Width(mm):233523352335
Overall Height(mm)(CBC):260026002600
Front Overhang(mm):133513351335
Rear Overhang(mm):216525803960
Minimum Ground Clearance(mm):270270270

Gross Vehicle Weight 16200 Kgs (POL Tanker GVW will vary)

Frame Section (DxWxT) (mm) 272x70x6
Front Suspension Multileaf Spring
Rear Suspension Multileaf Spring
Anti Roll Bar Front & Rear: Standard for hazardous goods pack(HGP), High centre of gravity pack(HCG) & 6700 WB /Optional (Other)

Service Brake Pneumatic, Foot Operated, Dual Line with ABS
Parking Brake Spring Actuated with Hand Brake Valve @ Cab
Front Axle Brake Ø 410 drum
Rear Axle Brake Ø 410 drum
Tyre Size Radial Tyre - 10.00 R 20

Steering Type Hydraulic Power Assisted

Fuel Tank/Filling Capacity 215L/200L, 215L/200L, 215L/200L
Adblue Tank/Filling Capacity 43L/36L
Voltage 24V
Battery Capacity 75Ah/100AH (HAP)

Maximum Gradeability % 23.9% (RAR 5.57) & 26.7% (RAR 6.17)
Maximum Geared Speed 80 kmph
Turning Circle Diameter(TCD)* 17.3m, 19.3m, 22.6m
