1415RE
overview

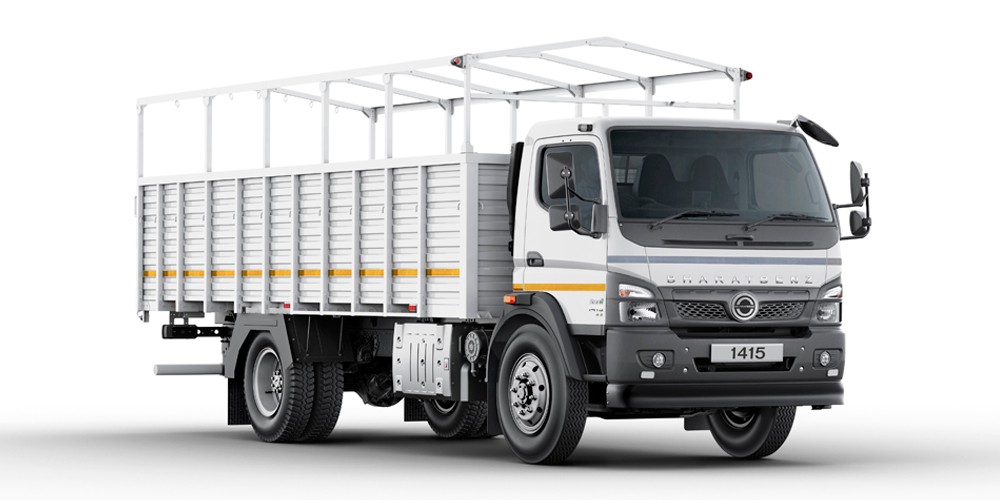

BharatBenz 1415RE is a truck that has a gross vehicle weight of 14500 kg (tubeless tyres), 14050 kg (tube type). The engine powering this BharatBenz truck is 3900 cc 4D34i, producing a maximum power 110 Kw @ 2500 rpm and maximum torque 460 Nm @ 1500 rpm. The engine of BharatBenz 1415RE truck is coupled with a 6 speed (6F+1R), With cable shift gearbox offering superior mileage. The wheelbase of 3360 mm, 3760 mm, 4250 mm, 4800 mm, 5050 mm, allows this BharatBenz truck to offer load body length suitable for different kinds of applications. Air Brakes offer superior safety in BharatBenz 1415RE and Multileaf Spring suspension in front offers good ride quality. More details of the BharatBenz 1415RE truck features like mileage, fuel tank capacity, tyre, suspension, photos, etc are available in the sections below.
Engine
  • Model : 4D34i
  • Maximum Power, KW : 110 Kw @ 2500 rpm
  • Maximum Torque, Nm : 460 Nm @ 1500 rpm
  • No. of Cylinders, Displacement (CC) : 4, 3900
  • Emission Compliance : Bharat Stage VI

Specifications

Gearbox Model & Type Improved G85, 6F+1R, Mechanical, Synchromesh Gears
Clutch Type Single Dry Plate, Hydraulic Control
Clutch Diameter(mm) 362

Front Axle Model, Type IF 5.0
Rear Axle Model, Type DANA S 145
Rear Axle Ratio* [6.33 S, 4.56 O],[6.33 S, 4.56 O],[4.56 S, 6.33 HAP/Optional],[4.56 S, 6.33 HAP & Optional],[4.56 S, 6.33 HAP & Optional]

Wheel Base(mm):33603760425048005050
Cabin:DayDayDayDayDay
Loading Span(ft)/Loadbody cpc (Cu.m):14.6ft17ft 20ft22ft24ft
Overall Length(mm):63807075803085809295
Overall Width(mm):21352135213521352135
Overall Height(mm)(CBC-Radial/Tubeless tyre):2480/24752480/24752480/24752480/24752480/2475
Front Overhang(mm):12751275127512751275
Rear Overhang(mm):17452040250525052970
Minimum Ground Clearance(mm)(CBC-Radial/Tubeless tyre):225/220225/220225/220225/220225/220

Gross Vehicle Weight 14050 Kgs/14500 Kgs (Only tubeless tyre)

Frame Section (DxWxT) (mm) 230x80x7
Front Suspension Multileaf Spring
Rear Suspension Multileaf Spring
Anti Roll Bar Optional (front & rear)

Service Brake Pneumatic, Foot Operated, Dual Line with ABS
Parking Brake Spring Actuated with Hand Brake Valve @ Cab
Front Axle Brake Ø 360 drum
Rear Axle Brake Ø 360 drum
Tyre Size Radial Tyres (8.25R20), Tubeless Tyres (255/70R22.5)

Steering Type Hydraulic Power Assisted

Fuel Tank/Filling Capacity 171L/160L, 215L/200L, 215L/200L, 215L/200L, 215L/200L
Adblue Tank/Filling Capacity 43L/36L
Voltage 24V
Battery Capacity 75Ah/100AH (HAP)

Maximum Gradeability % With 4.56 RAR - 22.4% (14.5t), Remaining RAR - 32.2% (14.5t)
Maximum Geared Speed 70 kmph (for RT), 80 kmph (for TT)
Turning Circle Diameter(TCD)* 13.4m, 13.8m, 15.7m 17.6m, 19.7m
