1217C
overview

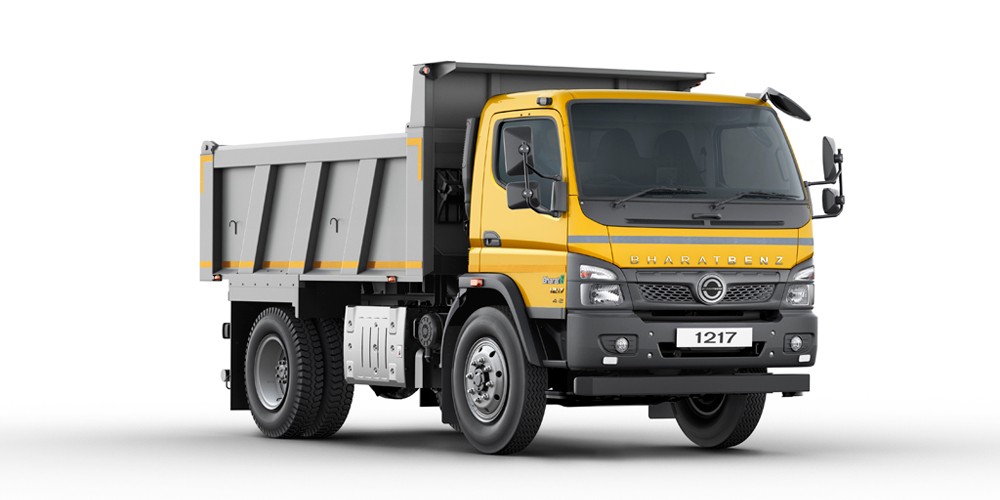

BharatBenz 1217C is a tipper truck that weighs around 13000kg generating a significant power of 125 Kw @ 2500 rpm from an 3900 cc 4 cylinder, 4D34i engine. These trucks are most suitable for the construction industry that demands consistent performance for longer periods of time. Additional specifications like fuel tank capacity, mileage, tyre, suspension, etc are available in the sections below.

Engine
  • Model : 4D34i
  • Maximum Power, KW : 125 Kw @ 2500 rpm
  • Maximum Torque, Nm : 520 Nm @ 1500 rpm
  • No. of Cylinders, Displacement (CC) : 4, 3900
  • Emission Compliance : Bharat Stage VI

Specifications

Gearbox Model & Type Improved G85, 6F+1R, Mechanical, Synchromesh Gears
Clutch Type Single Dry Plate, Hydraulic Control
Clutch Diameter(mm) 362

Front Axle Model, Type IF 5.0
Rear Axle Model, Type DANA S 145
Rear Axle Ratio* 6.33

Wheel Base(mm):3160
Cabin:Day
Loading Span(ft)/Loadbody cpc (Cu.m):6.5 Box
Overall Length(mm):5435
Overall Width(mm):2135
Overall Height(mm)(CBC):2420
Front Overhang(mm):1275
Rear Overhang(mm):1000
Minimum Ground Clearance(mm):245

Gross Vehicle Weight 13000 Kgs

Frame Section (DxWxT) (mm) 230x80x7
Front Suspension Multileaf Spring
Rear Suspension Multileaf Spring
Anti Roll Bar Standard on Both Axles

Service Brake Pneumatic, Foot Operated, Dual Line with ABS
Parking Brake Spring Actuated with Hand Brake Valve @ Cab
Front Axle Brake Ø 360 drum
Rear Axle Brake Ø 360 drum
Tyre Size Nylon Tyres (8.25x20)

Steering Type Hydraulic Power Assisted

Fuel Tank/Filling Capacity 171L/160L
Adblue Tank/Filling Capacity 43L/36L
Voltage 24V
Battery Capacity 75Ah/100AH (HAP)

Maximum Gradeability % 38.71%
Maximum Geared Speed 60 kmph
Turning Circle Diameter(TCD)* 12.2m
