1215R
overview

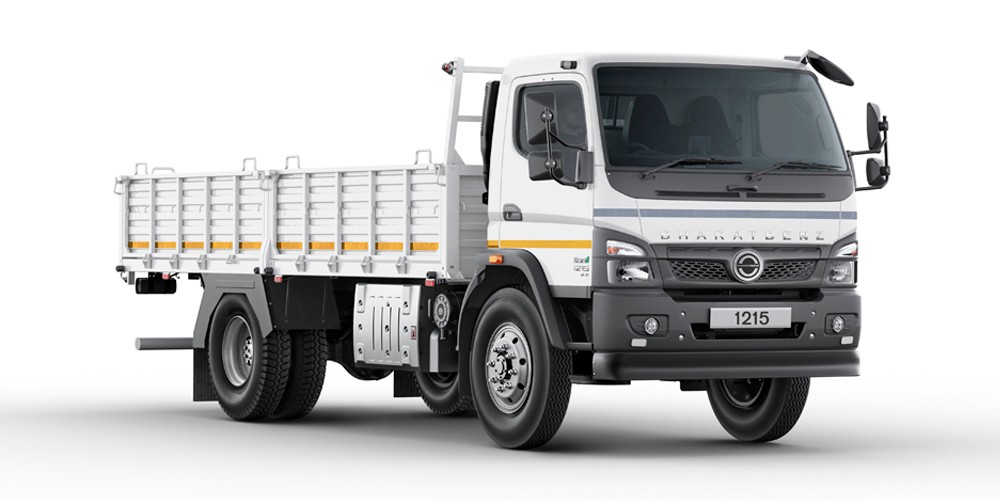

BharatBenz 1215R is an all round performer with a balanced gross vehicle weight of 11990kg. The truck in its heart has a 3900 cc 4 cylinder that offers a maximum power of 100 Kw @ 2500 rpm.

Engine
  • Model : 4D34i
  • Maximum Power, KW : 110 Kw @ 2500 rpm
  • Maximum Torque, Nm : 460 Nm @ 1500 rpm
  • No. of Cylinders, Displacement (CC) : 4, 3900
  • Emission Compliance : Bharat Stage VI

Specifications

Gearbox Model & Type Improved G85, 6F+1R, Mechanical, Synchromesh Gears
Clutch Type Single Dry Plate, Hydraulic Actuated
Clutch Diameter(mm) 362

Front Axle Model, Type IF 4.5
Rear Axle Model, Type DANA S 145
Rear Axle Ratio* [4.56 (S),6.33 (O)], [4.56 (S),6.33 (O)], [4.56 (S),6.33 (O)]

Wheel Base(mm): 4250 4800 5050
Cabin: Day Day Day
Loading Span(ft)/Loadbody cpc (Cu.m): 20ft 22ft 24ft
Overall Length(mm): 8030 8580 9295
Overall Width(mm): 2135 2135 2135
Overall Height(mm)(CBC): 2500 2500 2500
Front Overhang(mm): 1275 1275 1275
Rear Overhang(mm): 2505 2505 2970
Minimum Ground Clearance(mm): 245 245 245

Gross Vehicle Weight 11990 Kgs

Frame Section (DxWxT) (mm) 228x80x6
Front Suspension Multileaf Spring
Rear Suspension Multileaf Spring
Anti Roll Bar Optional (front & rear)

Service Brake Pneumatic, Foot Operated, Dual Line (Non-ABS)
Parking Brake Spring Actuated with Hand Brake Valve @ Cab
Front Axle Brake Ø 360 drum
Rear Axle Brake Ø 360 drum
Tyre Size Nylon Tyres (8.25x20)

Steering Type Hydraulic Power Assisted

Fuel Tank/Filling Capacity 215L/200L, 215L/200L, 215L/200L
Adblue Tank/Filling Capacity 43L/36L
Voltage 24V
Battery Capacity 75Ah

Maximum Gradeability % 4.56 - 26.3%; 6.33 - 38.2%
Maximum Geared Speed 80 Kmph
Turning Circle Diameter(TCD)* 15.7m, 17.6m, 19.7m
