1015R
overview

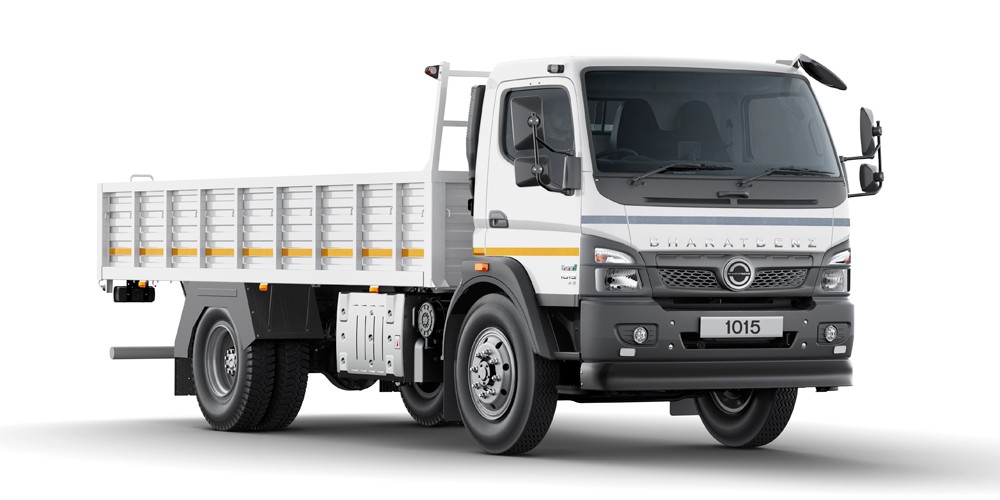

BharatBenz 1015R weighs around 10600 kg and is powered by a 3900 cc 4D34i engine that generates power of 110Kw @2500, providing a maximum torque of 460 Nm @1500 rpm.

The engine has a 6-speed (6F+1R) gearbox with cable shift which enables superior mileage. The expansive wheelbase dimensions of 3360 mm, 3760 mm, 4250 mm, 4800 mm make BharatBenz 1015R appropriate for various kinds of load applications.

Air Brakes installed with the truck ensure superior safety and semi-elliptical leaf suspension in front assists in good ride quality.

Engine
  • Model : 4D34i
  • Maximum Power, KW : 110 Kw @ 2500 rpm
  • Maximum Torque, Nm : 460 Nm @ 1500 rpm
  • No. of Cylinders, Displacement (CC) : 4, 3900
  • Emission Compliance : Bharat Stage VI

Specifications

Gearbox Model & Type MO36, 6 Speed Mechanical, Synchromesh Gears
Clutch Type Single Dry Plate, Hydraulic Actuated
Clutch Diameter(mm) 330

Front Axle Model, Type IF 3.6
Rear Axle Model, Type DANA S 130
Rear Axle Ratio* 4.56 (S), 5.13 (Optional)

Wheel Base(mm):3360376042504800
Cabin:DayDayDayDay
Loading Span(ft)/Loadbody cpc (Cu.m):14.6ft17ft20ft21ft
Overall Length(mm):6380698579508195
Overall Width(mm):2135213521352135
Overall Height(mm)(CBC):2420242024202420
Front Overhang(mm):1275127512751275
Rear Overhang(mm):1745195024252120
Minimum Ground Clearance(mm):205205205205

Gross Vehicle Weight 10600 Kgs

Frame Section (DxWxT) (mm) 228x80x6
Front Suspension Multileaf Spring
Rear Suspension Multileaf Spring
Anti Roll Bar Optional (front & rear)

Service Brake Pneumatic, Foot Operated, Dual Line
Parking Brake Spring Actuated with Hand Brake Valve @ Cab
Front Axle Brake Ø 325 drum
Rear Axle Brake Ø 325 drum
Tyre Size Nylon Tyres (8.25x16) Tubeless Tyres ( 235/75R17.5)

Steering Type Hydraulic Power Assisted

Fuel Tank/Filling Capacity 171L/160L, 215L/200L, 215L/200L, 215L/200L
Adblue Tank/Filling Capacity 43L/36L
Voltage 24V
Battery Capacity 75Ah

Maximum Gradeability % 24.38% (4.56 RAR) & 27.76% (5.13 RAR)
Maximum Geared Speed 80 kmph
Turning Circle Diameter(TCD)* 13.4m, 13.8m, 15.7m, 17.6m
