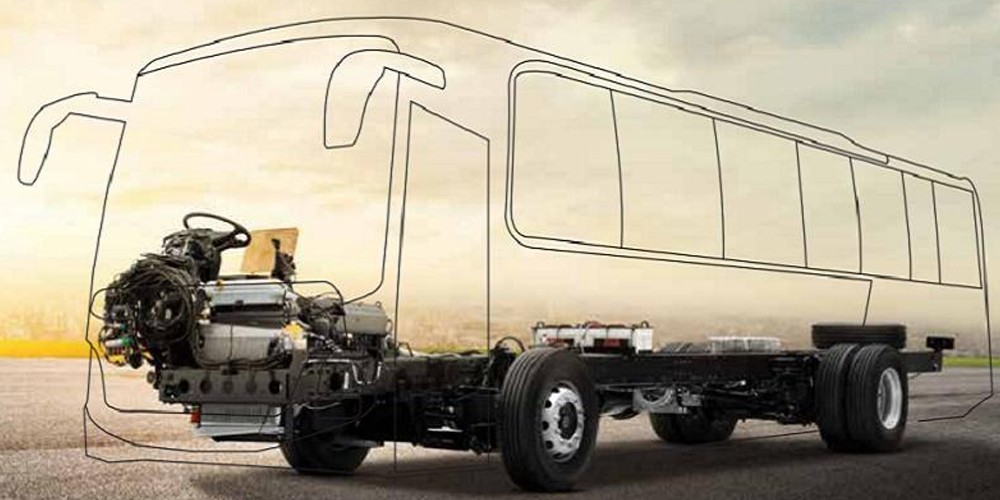

BharatBenz 1624 Chassis is a reliable platform engineered to maximize stable and constant performance. With an intelligent ECU controlling the engine and low and flat torque, the 1624 Chassis delivers unmatched fuel efficiency. The engine, exhaust system, wastegate turbocharger, electronic unit pumps, and ECY-controlled injectors further enhance the fuel-efficient characteristics of the chassis.
| Suspension | BharatBenz 1624 Chassis is loaded with glide air suspension at the front and rear that guarantees at most comfortable ride over long distances. Utilized suspension assembly integrated with a fine-tuned shock absorber to provide excellent ride comfort for both the passenger and the driver. |
| Better Handling | The wide chassis frame width and tubeless radial tyres enhances the stability of the vehicle, while the front and rear anti-roll bars result in improved cornering, better handling of the bus |
| Longer Service Intervals | World class proven OM 926 engine with optimized service intervals for engine and other aggregates like transmission, axle etc., ensures reliability in operations. |
| Engine: | OM926 |
| Power: | 240 hp (180kW) @ 2200 rpm |
| Torque: | 850Nm @ 1200-1600 rpm |
| Capacity/ Displacement: | 7200 cc |
| Fuel Injection Pump: | ECU controlled, Unit Pumps |
| Gearbox: | G85 OD, 6 speed |
| Clutch Type: | 395mm dia, Dry Single plate type |
| Brakes: | Pneumatic, with automatic slack adjuster |
| Auxiliary Brake: | Engine brake + Exhaust brake + Retarder (Optional) |
| Front axle: | 1F6.6, reverse elliot type |
| Rear axle: | IR440, Single Speed, Hypoid drive |
| Front suspension: | Air suspension with 2 air bellows |
| Rear suspension: | Air suspension with 4 air bellows |
| Anti-roll bar & shock absorber: | Both in front & rear |
| Fuel tank capacity: | 380 liters |
| Adblue tank capacity: | 60 liters |
| Tyres size: | 295/80 R22.5 |
| Wheel rim: | 8.25" x 22.5" |
| Streeing Type: | Power Steering, adjustable and tiltable |
| Battery: | 2x 12V, 200Ah |
| Alternator: | 100 Amps ( *Additional alternator for retarder variant ) |
| Frame Dimension: | 255mm x 73.5mm x 7mm |
| Wheelbase: | 5950 mm |
| Overall length: | 11765 mm |
| Chasis width: | 2530 mm |
| Front overhang: | 2305 mm |
| Rear overhang | 3510 mm |
| Restart Gradeability: | 20% |
| Min turning circle Diameter TCD: | 19.6 m |
| Min ground clearence: | 239 mm |
| Max Permissible legal GVW (KGS): | 16700 kg |
